Fisher's Mobile Assembly Table

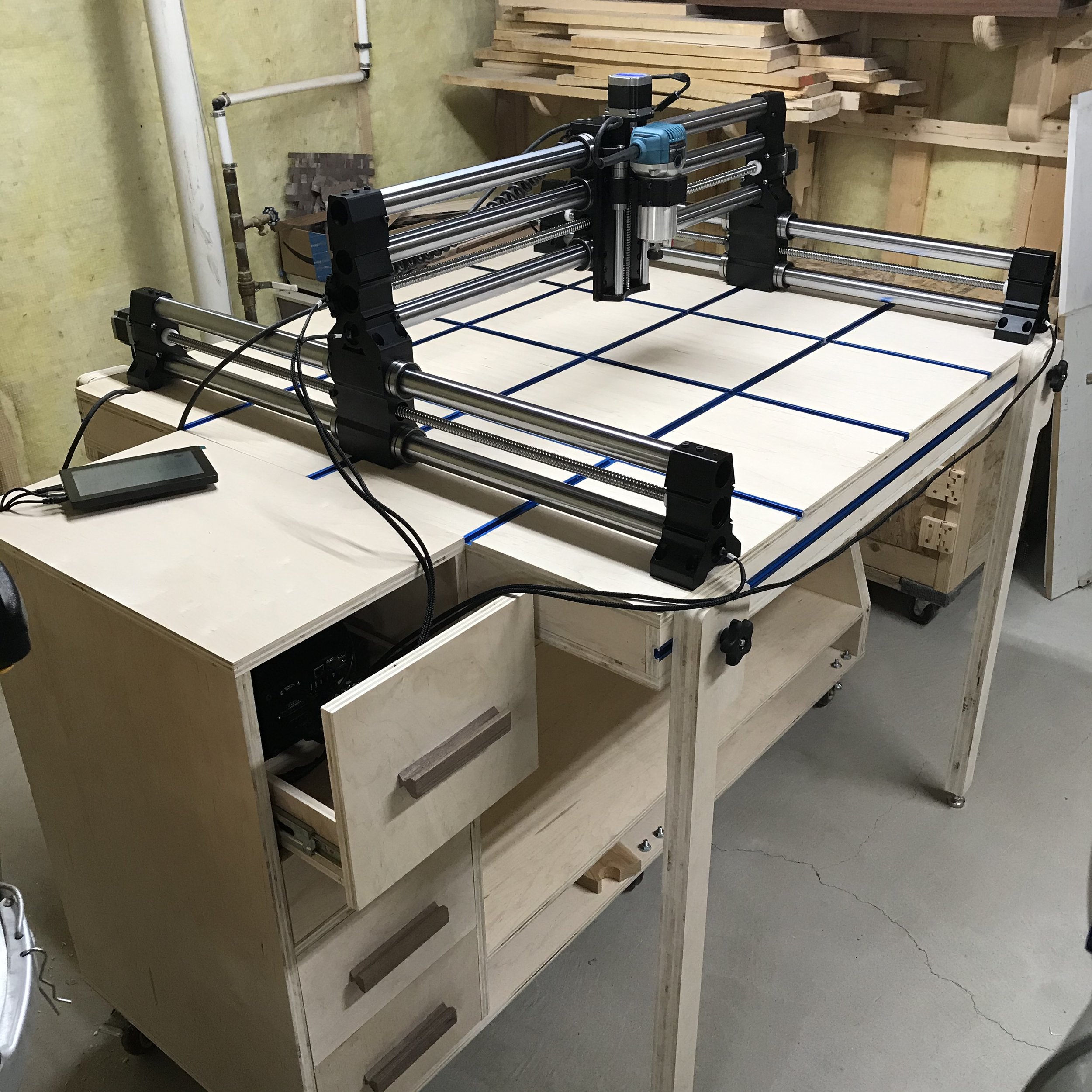

In my tiny shop, space is of paramount importance. I was in need of creating a large table that could both be a good work surface as well as a table for a CNC machine. Above all, the table needed to have a slim profile and a small footprint. I ended up designing the perfect solution that meets all my requirements and more! This table has a flippable surface that allows you to configure each side to accommodate your shop needs. Furthermore, it can be stored in the vertical position giving the table a slim form factor and conserving a ton of space! Add in all the other features such as integrated storage, nesting collapsible legs, integrated power, and you’ve got a heck of a space saving assembly table on your hands!
UPDATE: These instructions include the necessary dimensions to build a larger version of this foldable assembly table that will accommodate the OneFinity Journeyman as well!
Dimensions: All measurements are in Imperial format only!
Work surface dimensions:
48" x 46 1/2"
65” x 46 1/2” (Journeyman size)
Approximate dimensions:
Folded up: 60"H x 63"W x 22"D
Folded up (Journeyman size): 60”H x 80”W x 22”D
Deployed: 38"H x 63"W x 49 1/2"D
Deployed (Journeyman size): 38”H x 80”W x 49 1/2”D
File Format: This document is a PDF and readable using Adobe Acrobat Reader or other PDF-compatible viewers.
This document contains detailed step-by-step instructions on building the Mobile Assembly Table depicted in the video on Fisher's Shop YouTube channel. Haven't seen the video? Here's a link to it!
**Please note this is a DIGITAL FILE, not the physical item shown as the example.
